5/4" Anti-condens pompgroep instelbaar - vaste brandstof
5/4" Anti-condens pompgroep instelbaar 5°C tot 95°C - vaste brandstof
Voor cv-houtkachels, cv-haarden en hout/pellet cv-ketels tot 50 kW
Korte technieche informatie:
- 5/4" binnen en buiten draad
- Tot 111 kW vermogen
- Thermometers zijn tegelijk afsluiters
- Mixventiel instelbaar waarden 5°C tot 95°C
- Wilo Para 30/8 SC pomp (indien gewenst ook Grundfos Alpha 1 L 32-60 of Wilo Stratos Para 30/1-8)
- Isolatie maat 250mm breed en 400mm hoog
- Leidingen hart op hart 125mm
Geen voorraad, moet besteld vaak 2 tot 4 weken in overleg
Technische informatie fabriekant in engels uitgebreid:
BRV solid Fuel boiler pump unit 20355R-M3C-(P6/A6/P8)-CT
The unit for 1”1/4 (180 mm) circulating pumps consists of:
Supply
- Flanged ball valve supplied with in-handle thermometer (red ring; 0°C-120°C).
- Connection with 20 mbar check valve.
- “T” Connection for mixing valve.
- Connection.
Return
- Connection.

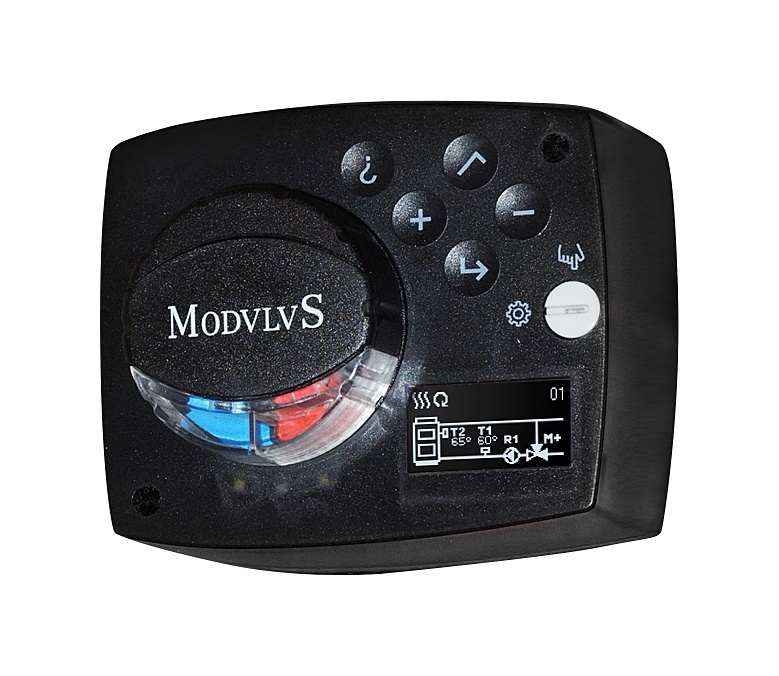

- 3-way mixing valve with electronic actuator.
- High efficiency synchronous pre-wired circulating pump (for the models that include it).

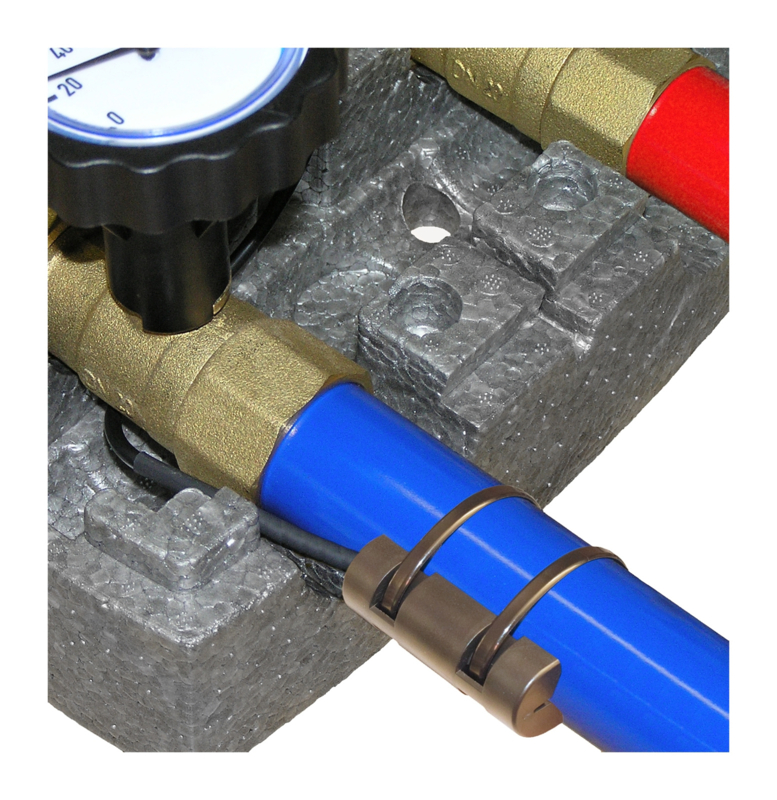

- Flanged ball valve supplied with in-handle thermometer (blue ring, range 0°C-120°C).
- Temperature sensor.
Centre distance 125 mm.
EPP insulation box (Dimensions: 250x400x170 mm).
PN 10, max temperature 110°C (unit without pump).
External connections: 1”1/4 Female.
FIELD OF USE
For power up to 111 kW (with Dt 20 K) and maximum flow rate 4800 l/h.
Kvs Value: 13.0.
Approximate data calculated with a 8 m head circulating pump (Wilo Stratos Para 30/1-8). For an accurate sizing or for higher flow rates, please refer to the curve.
