1" Anti-condens pompgroep 60 °C - vaste brandstof
1" Anti-condens pompgroep 60 °C - vaste brandstof
Voor cv-houtkachels, cv-haarden en hout/pellet cv-ketels tot 28 kW
Korte technieche informatie:
- 3/4: binnen en buiten draad
- Tot 28 kW vermogen
- Thermometers zijn tegelijk afsluiters
- Mixventiel 60 °C vaste waarden (indien gewenst ook 45 of 55 graden)
- Wilo Para 25/6 SC pomp (indien gewenst ook Grundfos UPM3S Auto 25-60 of Wilo Para 25/8 SC)
- Isolatie maat 250mm breed en 380mm hoog
- Leidingen hart op hart 125mm
Bijna altijd op voorraad
Technische informatie fabriekant in engels uitgebreid:

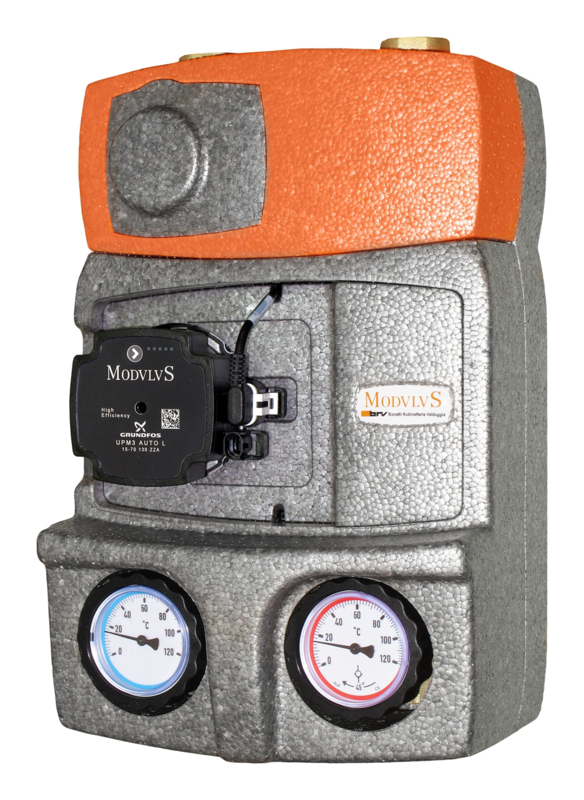

BRV solid Fuel boiler pump unit 20255R-F(3/4/5)CS-(P6/A6/P8)
The unit for 1” (180 mm) circulating pumps consists of:
Supply
- Flanged ball valve with 20 mbar check valve (which can be excluded by rotating the handle by 45°) supplied with in-handle thermometer (red ring; 0°C-120°C).
- “T” connection for thermic valve.
- Connection.
Return
- Connection.
- Recirculation thermic valve with the sensor dipped into the fluid. Start opening temperature: 60°C (F3), 45°C (F4) and 55°C (F5).
- High efficiency synchronous pre-wired circulating pump (for the models that include it).
- Flanged ball valve supplied with in-handle thermometer (blue ring, range 0°C-120°C).
Centre distance 125 mm.
EPP insulation box (Dimensions: 250x380x170 mm).
PN 10, max temperature 100°C (unit without pump).
External connections: 1” Female.
FIELD OF USE
For power up to 32 kW (with ∆t 20 K) and maximum flow rate 1400 l/h.
Kvs Value: 3.0.
Approximate data calculated with a 6 m head circulating pump. For an accurate sizing or for higher flow rates, please refer to the curves shown in the technical section.
